C-6 spinal ganglion, caudal parathyroid bud (pouch 3), cervical fold, common carotid artery, edge of shoulder, esophageal endoderm, falx cerebri region, frontonasal area, infra-orbital nerve, infrahyoid muscles (strap muscles of neck), internal jugular vein, jugular lymph sac, lateral nasal elevation, mandibular prominence of pharyngeal arch 1, maxillary prominence of pharyngeal arch 1, medial nasal elevation, neural arch, phrenic nerve, precommissural septum, primitive nasal cavity, primitive oral cavity, primitive palate, primordial neopallial cortex, primordial olfactory bulb, rostral parathyroid bud (pouch 4), semispinalis cervicis muscle, subclavian artery, termination of nasolacrimal duct, thyroid lobes, tracheal endoderm, trapezius muscle, vagus nerve (CN X), vertebral artery, vomeronasal nerve and nervus terminalis, vomeronasal organ

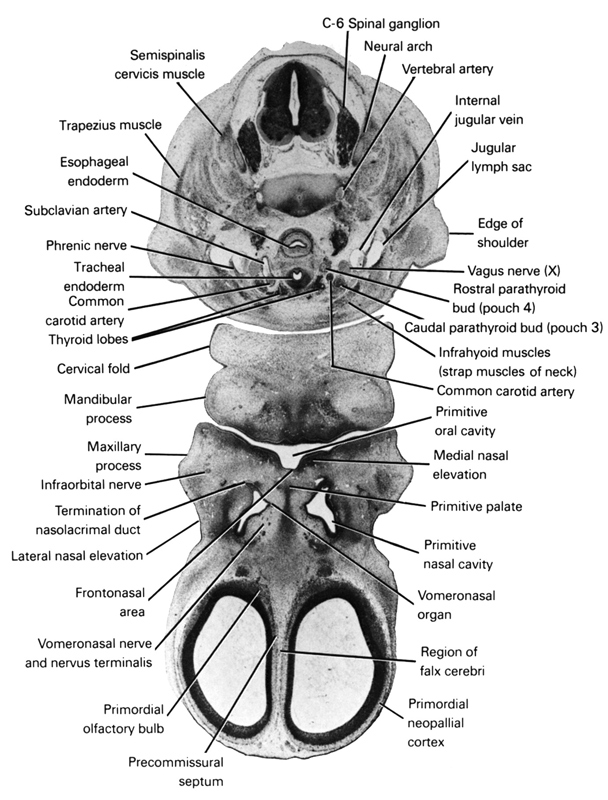

A section through the C-6 spinal ganglion and the primitive palate.

Observe:
1. The vomeronasal nerve coursing from the vomeronasal organ.
2. The relation of the maxillary process and nasal elevations to the primitive palate.
3. The rostral (fourth pouch) and caudal (third pouch) parathyroid buds dorsolateral to the thyroid gland.
4. The trachea ventral to the esophagus.
5. The edge of the shoulder.


Keywords: C-6 spinal ganglion, caudal parathyroid bud (pouch 3), cervical fold, common carotid artery, edge of shoulder, esophageal endoderm, falx cerebri region, frontonasal area, infra-orbital nerve, infrahyoid muscles (strap muscles of neck), internal jugular vein, jugular lymph sac, lateral nasal elevation, mandibular prominence of pharyngeal arch 1, maxillary prominence of pharyngeal arch 1, medial nasal elevation, neural arch, phrenic nerve, precommissural septum, primitive nasal cavity, primitive oral cavity, primitive palate, primordial neopallial cortex, primordial olfactory bulb, rostral parathyroid bud (pouch 4), semispinalis cervicis muscle, subclavian artery, termination of nasolacrimal duct, thyroid lobes, tracheal endoderm, trapezius muscle, vagus nerve (CN X), vertebral artery, vomeronasal nerve and nervus terminalis, vomeronasal organ

Source: Atlas of Human Embryos.
